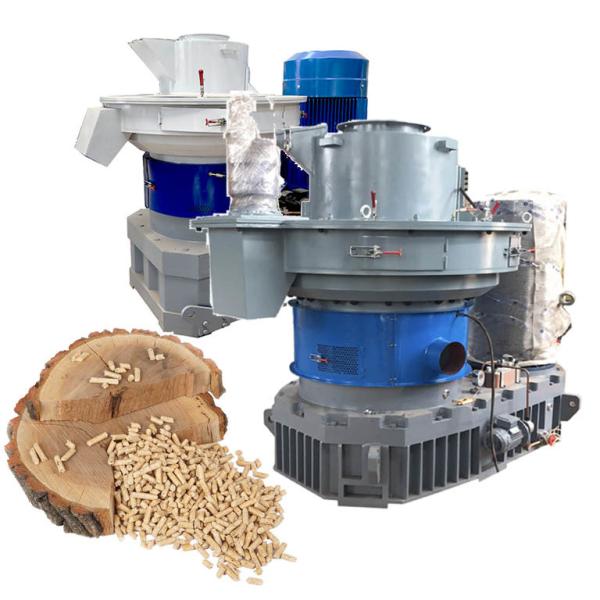

Wood Pellet Press Vertical Ring Die Double Layer Biofuel Pellet Mill For Sale
Introduction for wood pellet press:
XGJ wood pellet press is our main product which has adopted the essence of biomass pellet machine in oversea market and domestick market. Biomass pellet machine with vertical ring die structurer, the inner ring die verticall installed on the machine, with 2 layers, one ring die can using 2 times, cut down the running cost for wood pellet making.
The wood pellet press for sale have 2 pcs big rollers rotary againsed the innerside of ring die inside, so big part ring die fixed on machine, only rollers rotary, make the wood pellet mill for sale working more stable, and continually no stop working.
The XGJ wood pellet press main shaft directly connecting with the gearbox, and the motor also installed vertically on the gearbox.
Make the machine more compact and working stable.
This wood pellet press mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, soft wood sawdust, rice husk, sunflower husk, peanut shell and coffe husk, or other fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks, and other biomass materials.
Mainly Parameters for wood pellet press:
| Model | Power (kw) | wood pellets making Capacity (kgs/h) | Weight of the machine(kgs) | Dimension of the machine (mm) |
| XGJ460 | 55+1.5+0.55+1.5 | 500-800 | 4200 | 2600x1100x1850 |
| XGJ460P | 55+1.5+0.55+1.5 | 500-800 | 3200 | 2300x1100x1500 |
| XGJ560 | 90+1.5+0.75+0.55+2.2 | 1000-1500 | 6100 | 2600x1300x2300 |
| XGJ560P | 132+1.5+0.75+0.55+2.2 | 1500-2000 | 4600 | 2600x1250x1600 |
| XGJ700P | 160+1.5+0.75+0.55+2.2 | 2000-2500 | 14500 | 3300x1400x2100 |
| XGJ850 | 220+3+0.75+0.55+3 | 2000-3000 | 9600 | 2600x1600x1950 |
| XGJ850P | 220+3+0.75+0.55+3 | 2500-3500 | 13500 | 2650×1850×2100 |
| XGJ850P | 250+3+0.75+0.55+3 | 3000-4500 | 15000 | 2750×1850×2100 |
Photos of wood pellet press:
Sucessful Case for wood pellet maker customers:
We have installed many complete biomass fuel wood pellet maker line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about the wood pellet maker.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about us.
