220KW 3T/H Capacity Factory Using Biomass Wood Pellet Extruder
Introduction for wood pellet extruder:
XGJ wood pellet extruder is our main product which has adopted the essence of pellet mill in oversea market. Have good market in Euorpe and South Asia.
we have developed this biomass pellet making machines, make the wood pellet exturder machine gearbox more bigger and strongger, machhine working more stable, and machine rollers and gears totally automatically lubricated, machine can long time no stop working.
This wood pellet extruder applicable for difficult molding materials with low adhesion rate,for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks; and other biomass materials.
Vertical ring die wood pellet extruder can using from different place, such as wood processing plants, fuel plants,fertilizer plants, chemical plants etc. It is the idea equipment for you to invest on biomass energy fuel pellet making business.
Mainly Parameters wood pellet extruder:
| Model | Power (kw) | Capacity for wood pellets(kgs/h) | Weight of the machine(kgs) | Dimension of the machine (mm) |
| XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
| XGJ560P | 132+1.5+0.37+1.5 | 1500-2000 | 4600 | 2600x1250x1600 |
| XGJ850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
| XGJ850P | 220+3+0.37(0.55)+2.2 | 2500-3500 | 9600 | 2600x1600x1950 |

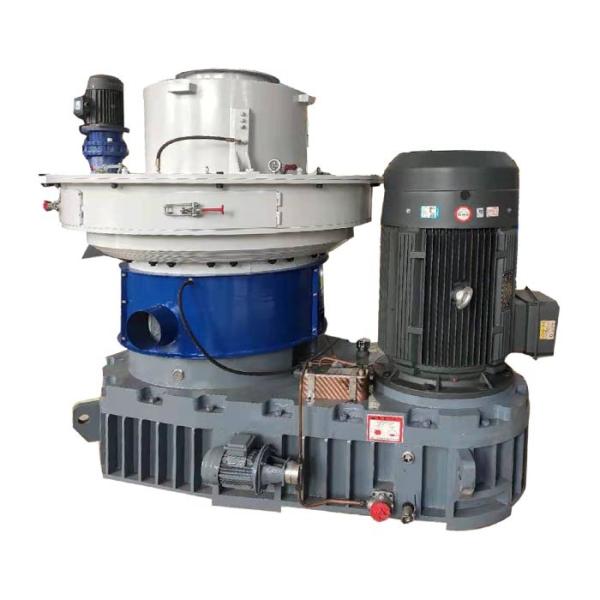

Photos of wood pellet extruder:
Sucessful Case for the wood pellet extruder:
We have installed many complete pellet production line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about the machines.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about us.
Product Tags:
|
|
850mm Ring Die Wood Pellet Extruder 6mm Biomass Pellet Making Machine Images
|
